Ball mill is a widely used equipment in the powder grinding industry. In order to meet the fineness requirements of the production process, the crushed materials must also be finely ground by the powder grinding machine. This type of experimental ball mill is mainly composed of transmission device, feeding device, main bearing device, rotating part, gear cover, discharging device, mill bottom plate and other components. It can be used for school experiments, scientific research unit experiments, etc.

This project uses a φ0.6×0.7m dry grid ball mill to grind ore materials. Our company mainly provides integrated technical services such as installation, commissioning, and after-sales of customized test ball mill equipment for this project.

Screening material: ore

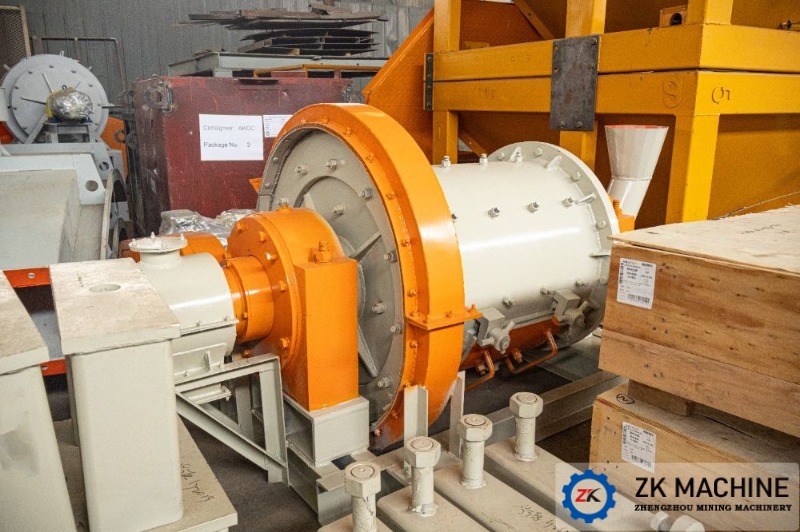

Equipment configuration: φ0.6×0.7m dry grid ball mill

Equipment working principle

This type of experimental ball mill is an edge-driven, center-discharging ball mill. When the machine body rotates, the grinding medium is continuously ejected due to friction. The material is highly crushed due to the impact and grinding of the moving grinding media, and the crushed material is discharged through the discharging grate plate, lifting plate, and discharging spiral drum.

Features of ball mill

① The overall equipment occupies a small area, has a compact structure, a small and exquisite appearance, simple operation, and convenient maintenance.

② The motor and reducer are driven by a triangular V-belt, which has a simple structure, convenient use and maintenance, stable transmission, low noise, and overload protection.

③ The bottom plate of the mill adopts an integral structure, which effectively improves the installation accuracy and reliability of the whole machine.

④ Strong sealing, energy saving and environmental protection.
